Mini Dental Implants – Remedy for loose dentures

Mini Dental Implant Screw

Mini Dental Implant Screw

What are dental implants?

Dental implants are titanium alloys made to replace roots of missing teeth. It is usually surgically placed in the jaw bone underneath your gums and fuses to the jaw bone after certain period of time. Dental bridges, dentures and dental crowns are then placed on top of dental implant for function.

What are mini dental implants?

Mini implants are miniature type of conventional dental implants. They can also be considered as cheap dental implants as they are mostly one quarter to one third of the cost of a conventional dental implant.

What is mini dental implant for?

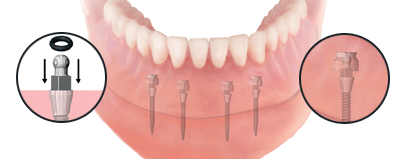

Its’ most popular usage nowadays is for denture stabilization. People with full denture (total lost of teeth in upper or lower jaw or both) often face problems like denture looseness, speech and eating difficulties. When we lost our teeth, we lose our jaw bone in time as bone resorbs without teeth. Dentures or false teeth are mainly supported by good jaw bone levels. As mini implants could help preserve jaw bone levels by acting as artificial roots of missing teeth, thus, they could stabilize dentures.Denture stabilization with mini dental implants

Picture taken from

What are the procedures of placing mini dental implants?

Initial assessment by dentist

Initial dental check up at a dental clinic is crucial to determine whether you are a suitable candidate for mini implants. Contraindications include uncontrolled diabetes, dementia, severe osteoporosis, immuno-compromised patients (AIDS), drugs abuse and post radiotherapy patients. Factors that may cause failure to the treatment include heavy smoker and drinker, Parkinson’s disease, people with bruxism (clenching teeth often) and growing patient.

If you are suitable, radiographs (x ray) would be taken to access the jaw bone levels and to rule out any abnormalities before treatment is proceeded. The dentist would also check your present denture to see whether it is fit for the procedure. Ill- fitting dentures will be either, relined (re-layering of the fitting surface of the denture), rebased (redo the whole fitting base of the denture) or redone.

Placing of mini dental implants

Next, numbers and sizes of the mini dental implants would be determined. Mini dental implants come in four diameters, which are 1.8mm, 2.1mm, 2.4mm and 2.9mm. Each diameter comes with 4 lengths (10mm, 13mm, 15mm, and 18mm). A simple 1.8mm mini implant would resemble a tooth pick. To stabilize a full denture it would usually require 4 to 6 mini dental implants. They are often placed at the anterior part of the jaw to avoid injuring nerve bundles at the posterior region of the lower jaw and sinuses at the upper jaw.

After determining the exact spots for mini dental implant placement, dentist would draw the spots on the gums of the jaw with an indelible pencil.  The gum is then numbed over the spots. Dentist would drill a small hole with a pilot drill through the gum into the jaw bone. The dentist would then use a finger wrench followed by thumb or ratchet wrench to screw and align the mini implant in the drilled hole. Mini implant is seated until 1.5mm of its shank and the ball above the gums.

Retrofitting the denture

Hollows are made on the fitting surfaces of your denture corresponding to the placements of mini implants on your jaw. Soft relines are placed in the hollows of the denture to allow it to snap and fit over the ball head of the mini implant. This method transmits less force to the implant, making its integration well with the bone. This soft relines are usually changed once or twice a year.

Another method is to put specially designed housing and o-rings in the hollows and allow the denture to snap in firmly to the mini implants. O-rings would be changed accordingly if it wears off.

Special Housing and O rings for retrofitting the denture

Picture taken from :

Some dentists prefer putting soft relines for the initial one year to allow better adaptation of patient to the new stabilized denture. After which, permanent housing and o-rings would be placed. Some patients prefer soft relines permanently as they are easy and cheap.

Pros and Cons of mini dental implant

It is a minimally invasive procedure that does not require incision and suturing. Healing is immediate. There is no obvious pain and bleeding. You can wear and use your newly retrofitted denture on the same day when you come out of the dental surgery! Mini dental implant can also support partial denture. The treatment is fast as it only requires 1 to 1 ½ hour.

If your jaw bone is dense, the mini implants may fracture during screwing. The dentist would usually smoothen and remove the upper part and leave the implant in place to allow its integration with bone. Another spot is drilled afterwards. It is safe to leave fractured implants in jaw bone as titanium alloys integrate well with bone.

There is no guarantee to the longevity of mini implants. It still depends on functional load and how your bone reacts to its existence.

However, mini dental implants are still a cheap revolutionary remedy for loose denture.
